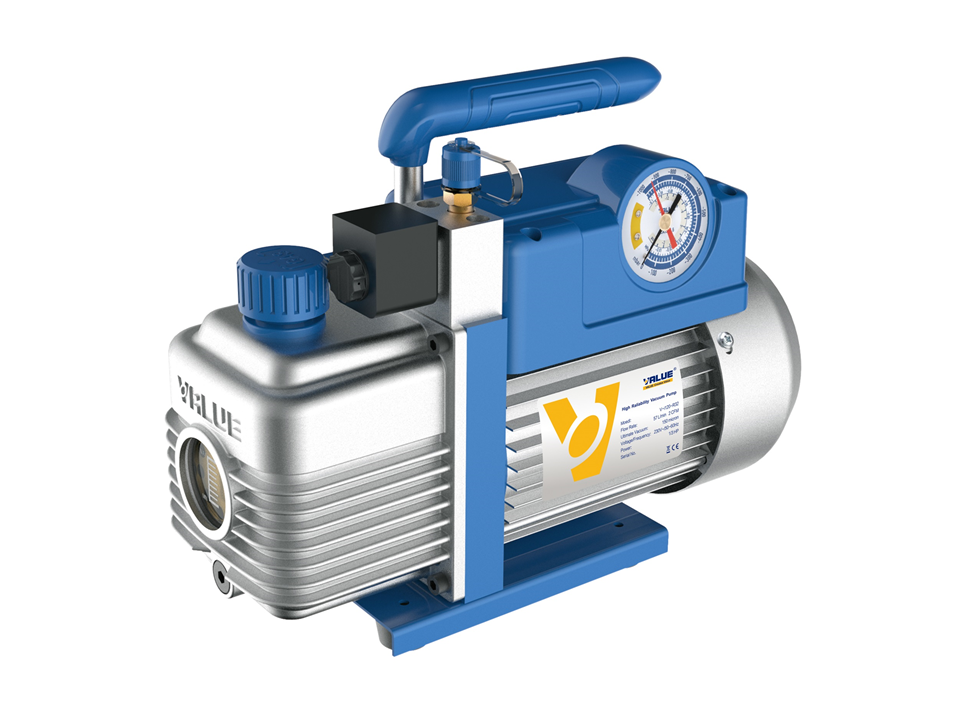

Vacuum Pump V-i240-R32

Rs. 30000

The VALUE V-i240-R32 Dual Stage Vacuum Pump is a professional high-performance vacuum pump designed for servicing modern HVAC and refrigeration systems using HFC and HCFO refrigerants, including R32 and R1234yf. Featuring a powerful dual-stage design, built-in precision vacuum gauge, oil backflow prevention system, and compact durable construction, it delivers deep vacuum performance for fast, reliable, and efficient system evacuation.

  • Model No: V-i20-R32
  • Status: Out Of Stock

The VALUE V-i240-R32 is a premium dual-stage vacuum pump engineered to provide fast, deep, and reliable evacuation for professional HVAC and refrigeration applications. Specifically designed for use with HFC and HCFO refrigerants, including R32 and R1234yf, this vacuum pump is ideal for servicing modern air conditioning systems, heat pumps, refrigeration equipment, and automotive A/C systems. Powered by a 0.37 kW (0.5 HP) high-efficiency motor, the V-i240-R32 delivers an impressive 100 L/min (3.5 CFM) free air displacement while achieving an ultimate vacuum level of 0.2 Pa (15 microns). Its dual-stage compression system removes moisture, air, and non-condensable gases quickly and efficiently, ensuring maximum system performance and long compressor life. The pump features an integrated 50 mm precision vacuum gauge, allowing technicians to monitor evacuation progress in real time. A built-in vacuum solenoid shut-off valve prevents oil from flowing back into the refrigeration system after shutdown, protecting system cleanliness and reducing maintenance. Designed for durability and convenience, the compact aluminium housing includes a large oil sight glass for easy oil level inspection, a comfortable carrying handle for portability, and compatibility with an optional P4 oil mist filter to maintain a cleaner working environment. Whether you're installing new HVAC equipment or performing routine maintenance, the VALUE V-i240-R32 delivers professional-grade performance, reliability, and efficiency for every service task.





Key Features

  • High-performance dual-stage vacuum pump for deep evacuation
  • Compatible with HFC & HCFO refrigerants, including R32 and R1234yf
  • High pumping capacity of 100 L/min (3.5 CFM)
  • Achieves an ultimate vacuum of 0.2 Pa (15 microns)
  • Integrated 50 mm precision vacuum gauge
  • Built-in vacuum solenoid valve prevents oil backflow
  • Large oil sight glass for quick oil level monitoring
  • Optional P4 oil mist filter compatibility
  • Durable aluminium housing with compact, lightweight design
  • Ergonomic carrying handle for easy transport
  • Reliable performance for professional HVAC and refrigeration service

Applications

Ideal for:

  • Residential & Commercial Air Conditioning Installation
  • HVAC System Evacuation
  • Refrigeration Equipment Maintenance
  • Heat Pump Installation
  • Automotive Air Conditioning Service
  • Refrigerant Recovery & Charging Preparation
  • Cold Storage Systems
  • Industrial Refrigeration Applications

Technical Specifications

SpecificationDetails
BrandVALUE
ModelV-i240-R32
Pump TypeDual Stage Vacuum Pump
Compatible RefrigerantsHFC & HCFO (R32, R1234yf and similar)
Flow Rate100 L/min (3.5 CFM)
Ultimate Vacuum0.2 Pa / 15 Microns
Motor Power0.37 kW (0.5 HP)
Compression Stages2
Power Supply230 V
Frequency50–60 Hz
Motor Speed1400 rpm (50 Hz)
Noise Level65 dB
Inlet Connection1/4" SAE
Oil Capacity0.325 L
Oil TypeMineral Oil (Viscosity: 46 mm²/s)
Vacuum GaugeInternal, 50 mm, Class 1.6 Accuracy
Vacuum Gauge Unitsmbar / kPa
Shut-Off ValveYes
Protection ClassIP44
Operating Temperature5°C to 40°C
Storage Temperature-20°C to 60°C
Minimum Oil Temperature5°C
Dimensions338 × 138 × 248 mm
Weight11.0 kg
PackagingCardboard Box

Why Choose the VALUE V-i240-R32?

The VALUE V-i240-R32 Dual Stage Vacuum Pump is engineered for professionals who demand deep vacuum performance, reliability, and efficiency. With its powerful dual-stage system, precision vacuum gauge, oil backflow protection, and compact portable design, it delivers fast and dependable evacuation for modern refrigerant systems. Whether servicing residential air conditioners, commercial HVAC installations, or refrigeration equipment, the V-i240-R32 helps ensure clean, moisture-free systems and long-term operational performance.
